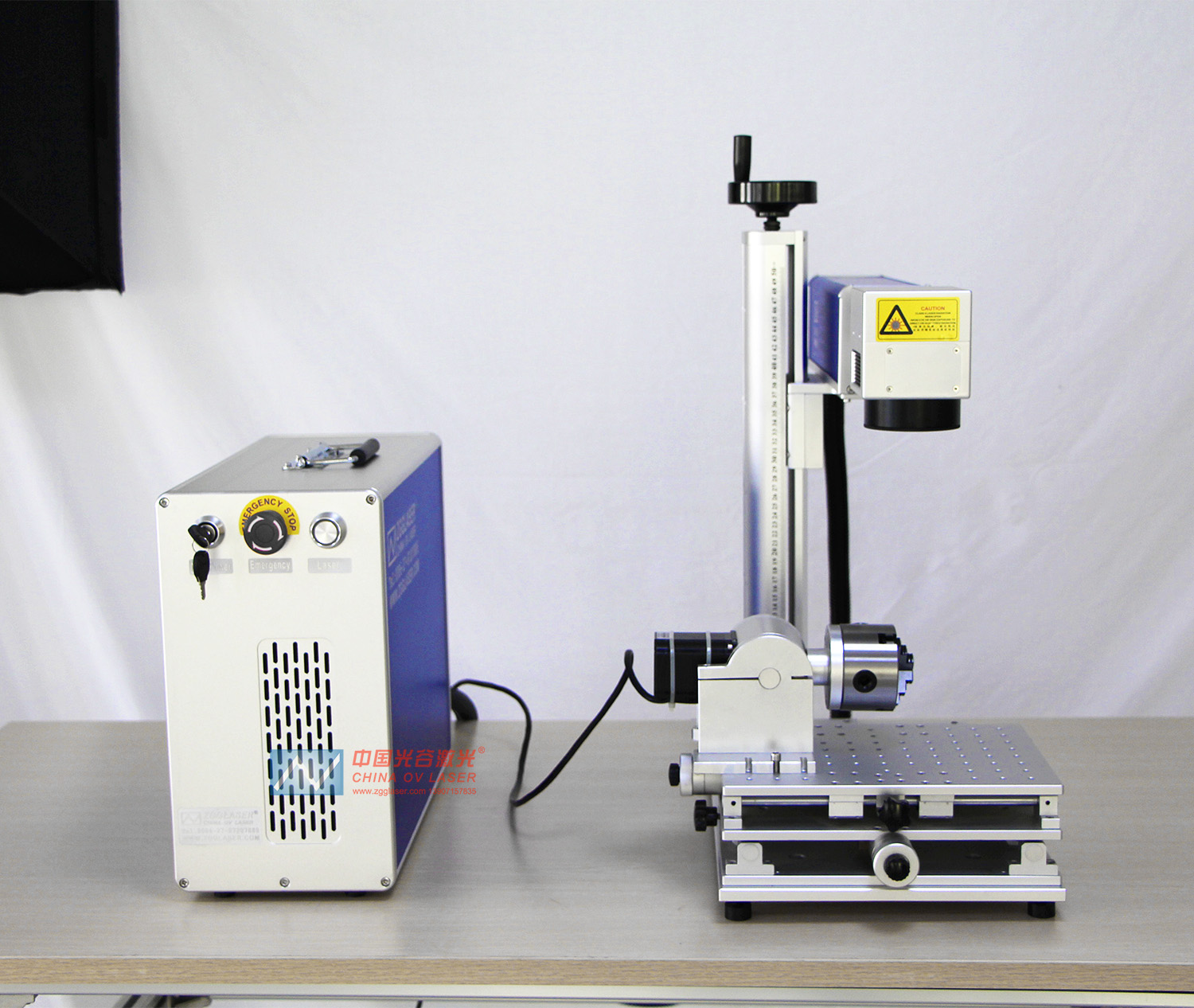

Metal Tube and Steel Cup Fiber Laser Marking Machine with 80mm Rotary Device

Fiber Laser Marking Application

It can mark time, date,text, serial and part numbers, company logos, icon, symbol,bar codes, or 2D codes,matrix and vector fonts on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.

OV LASER - Fiber Laser Marking Advantages

1. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .

2. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.

3. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,

4. Recommend the machine as per customer's exact needs with the concept of economic and practical.

5. We not only provide the machine itself, but also provide the professional laser solutions at customer end.

6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries .

Main Parts

1. China Famous JPT MOPA Fiber Laser Source

The Mopa fiber laser can maintain the peak power at the same level for different pulse repetition frequency.

Compare with conventional solid state lasers,the MOPA fiber lasers with higher slope efficiency is more compact and easy to carry,enables higher beam quality of the laser output.It has advantage in high-speed marking application.

2. Digital Galvanometer Scanning Head

Fast speed ablity ＜0.7ms,can realize

high speed marking and high precision.

4. Control System

EZ-CAD control system with stable performance and high reliability.
Shield-utilizing part of complex functions,ensuring higher stability.

5. Red Light Pointer

Adpot double red ligh pointer to show the laser patch since laser beam is invisible..

6. Lifting Handle / Electric Design Optional

Shake hand wheel and electric lifting optional.
Laser focus distance can be adjusted easily.
Operation is simple and convenient.

7. Switching Power supply and Control System

Control system use famous Taiwan ”MW” power supply

with stable performance.

Professional technology and long lifetime.

8. Control Switch

(1)Emergence Stop: Press it when meets error,the machine will stop working immediately to avoid loss.
(2)Key Swith : Using key switch to control the power of the machine.
(3)Power Switch: It is designed as a easy button, safe and efficient.

9. Rotary Device optional for cylinder

Diameter Size: 50mm , 65mm, 80mm, 100mm, 125mm, 160mm etc. Any size be customized.

Technical Parameter Data

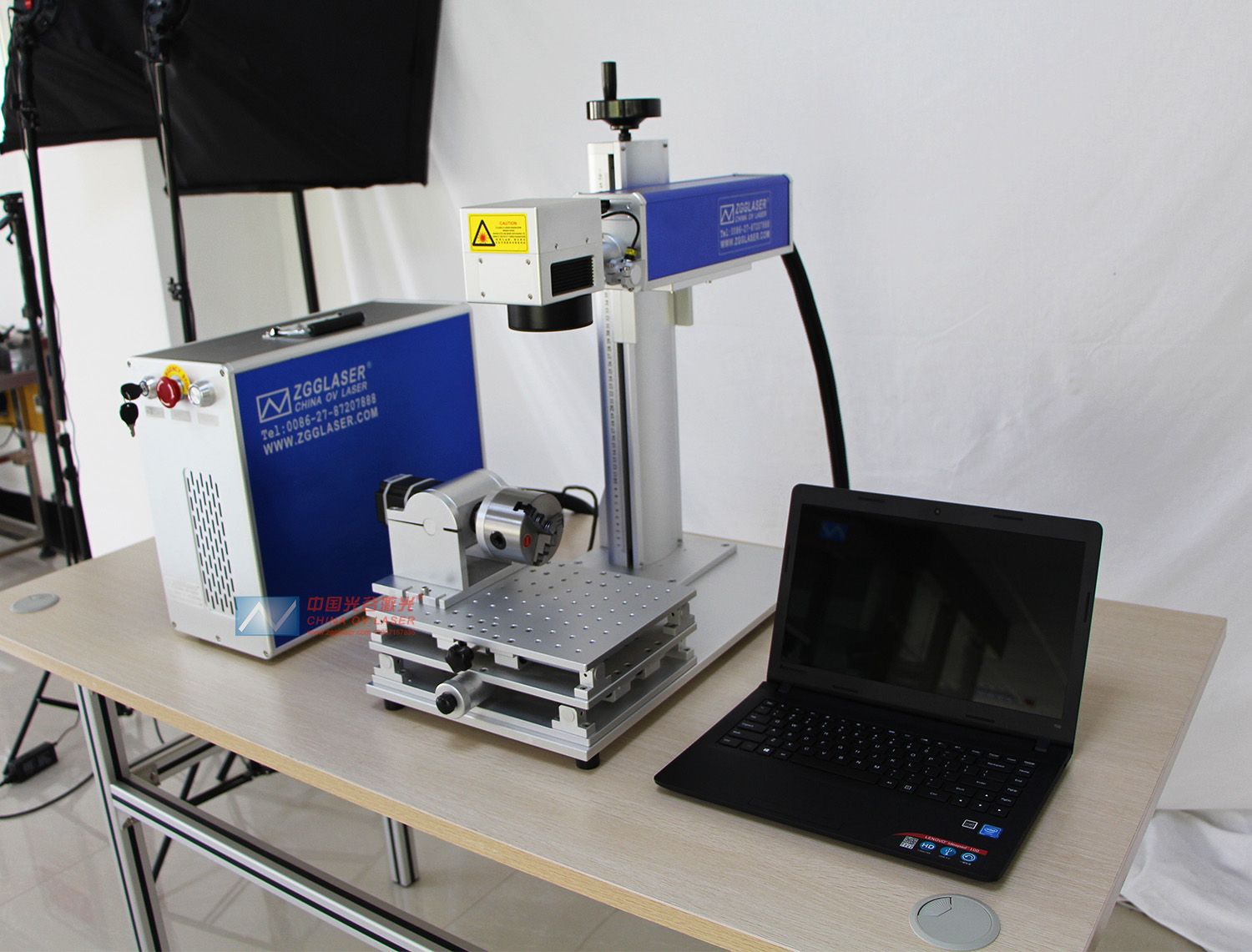

Rotary Fiber Laser Marking Machine in Workshop

Wuhan Optics Valley Future Laser Equipment Co. Ltd. is the subsidiary of CHINA OV LASER, which is register in China Optic Valley located in Wuhan city as a high-tech corporate enterprise. It is the international leading laser technology supplier, which is a design, R&D, manufacturing and sales of integrated company. In addition, it is also known as Wuhan China Optics Valley high-tech enterprises, the core Chinese Optics Valley laser enterprise, a professional manufacturer of large laser equipment, the biggest exporter of China marking equipment. The company is committed to research and development, production of laser marking machine, laser cutting machine, laser cleaning machine, laser rust removal machine, and other laser equipment, provide the most excellent products and best service to our customers.

At present, China OV LASER has more than 10000 users in the domestic automobile, motorcycle, aerospace, shipbuilding, petroleum machinery, engineering machinery, hardware tools, electronic and chemical, steel and plastic film industry, throughout the nationwide 30 provinces, autonomous regions, municipalities directly, and exported to Germany, American and some Southeast Asian countries and regions with highly applause and popular.

China OV LASER has a high-quality talent team, including 3 doctors, and computer, electrical automation, machinery professionals, with strong technology development and technical innovation ability.

The company based on ISO9001 quality control system, have been strictly control on each procedure of stereotyped products in the procurement of raw materials, manufacturing, whole set delivery, etc., ensure the performance and quality of each equipment.

China OV LASER set up a nationwide marketing management center, customer service call center, as well as more than 30 offices and agents. The company provide the customized marking solution for you, including pre-sales consulting sample marking, installation and commissioning, professional training, after-sale support service and so on. With unique professional appearance, advanced marketing concept and perfect service, our company allow you to enjoy comprehensive support and service, and help your business growing steadily. China OV LASER focus on the developing of marking and laser industry, and have developed more than 150 kinds of models, including laser marking machine, laser cutting machine, laser cleaning machine, laser rust removal machine, laser welding machine, etc., obtained more than 30 national patents. By the user consistent high praise, the company established stable cooperation business relationship with a number of well-known domestic enterprises.

In accordance with the concept of only professional service to pursuit excellence, and the direction of being the famous enterprise in China laser industry, our company will design and provide perfect marking solution integrated with reliable equipment, advanced software and quality service according to the customized requirements from customers in all industry, and establish a long-term relationship with partners.
