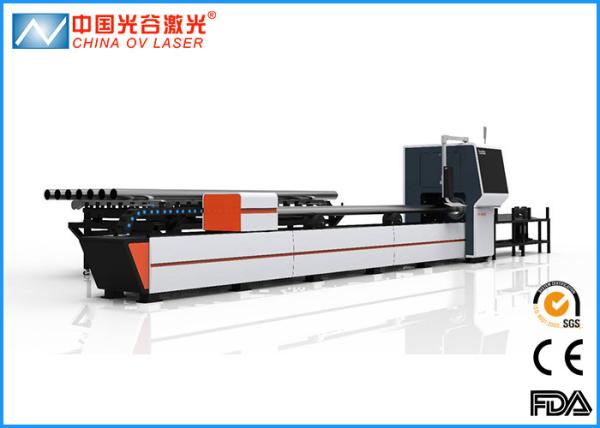

    Mild Galvanized Stainless Steel Automatic Pipe Laser Cutting Machine with High Speed

    Ask Lasest Price
    Brand Name : OV LASER
    Model Number : OV PC-500A
    Certification : CE FDA ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 20 - 30 days
    • Product Details
    • Company Profile

    Mild Galvanized Stainless Steel Automatic Pipe Laser Cutting Machine with High Speed

    Mild Galvanized Stainless Steel Automatic Pipe Laser Cutting Machine with High Speed



    Model Introduction


    Tube laser cutting machine is a precision cutting machine and specialized developed for pipe industry by OV LASER, used to once shaping of cutting round pipe, square pipe and irregular pipes, which not limited to the length of the pipe, with high automaticity, directly lead in three-dimensional graphics, automatic recognition cutting path, and precision high-speed processing. Automatic loading and unloading systems are optional. The system supports background remote operation


    Model Features


    1. Adopts all- through CNC rotary chuck, large passable diameter of pipes, the largest diameter is 85mm.


    2. Independent innovative designed secondary circulating feeding system, cut longer mosaic graphics within a limited range of travel.


    3. Integrated cutting system, high strength automation, fast dynamic response.


    4. Equipped with multiple different auxiliary gas inlet system, automatic conversion between high pressure and low pressure and different gases.


    Fiber Laser Cutting Metal Tube Thickness


    Material

    500W

    700W

    1000W

    2000W

    3000W

    4000W

    Carbon steel

    6mm

    8mm

    10mm

    15mm

    18-20mm

    18-22mm

    Stainless steel

    3mm

    4mm

    5mm

    8mm

    10mm

    12mm

    Aluminum

    1mm

    3mm

    3mm

    6mm

    8mm

    10mm

    Brass

    1mm

    2mm

    2mm

    5mm

    5mm

    5mm

    Copper

    1mm

    2mm

    2mm

    4mm

    4mm

    4mm

    Galvanized steel

    1mm

    2mm

    2mm

    4mm

    4mm

    4mm


    Technical Parameters


    Model Number

    OV PC-500A

    OV PC-1000A

    Tube Length

    6000mm

    8000mm

    Tube Diameter

    20mm - 200mm

    20mm - 300mm

    Bundle Size

    800mm×800mm×6000mm

    800mm×800mm×8000mm

    Laser Source

    Fiber laser resonator IPG / N-light

    Laser Head

    Raytools laser cutting head

    Laser Source Power

    700W 1000W 1500W 2000W 3000W

    Maximum Loader Weight

    25kg/m

    Repeat Position Accuracy

    ±0.03mm

    Maximum Position Speed

    70m/min

    Acceleration

    1g

    Cutting Speed

    depend on material, laser source power

    Electric Power Supply

    AC380V 50/60Hz


    Applicable Tube Materials


    Stainless steel, mild steel, carbon steel, aluminum, brass, copper, galvanized steel, etc.


    Applicable Types of Tube


    Round tube, square tube, triangle tube, rectangular tube, oval tube and other irregular-shaped tubes, etc.


    Applicable Industries


    Furniture, medical device, fitness equipment, oil exploration, display shelf, farm machinery, bridge, shipping, structure parts, etc.


    Packing & Delivery


    1. Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.


    2. All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.


    3. The outmost is wooden case with fixed formwork.


    4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
