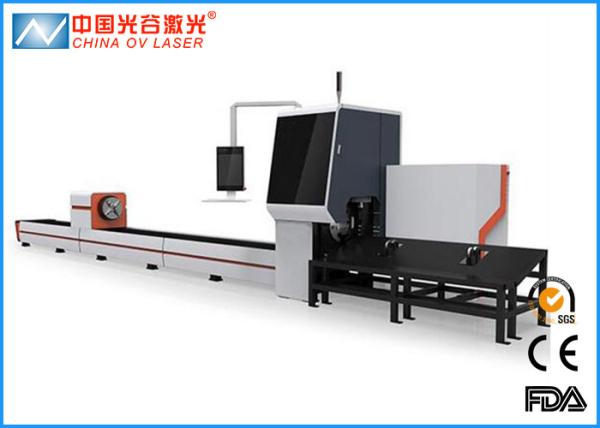

    Nlight 700W Fiber 1mm Metal Tube Laser Cutting Machine for Medical Device

    Ask Lasest Price
    Brand Name : OV LASER
    Model Number : OV PC-700L
    Certification : CE FDA ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 20 - 30 days
    • Product Details
    • Company Profile

    Nlight 700W Fiber 1mm Metal Tube Laser Cutting Machine for Medical Device

    Nlight 700W Fiber 1mm Metal Tube Laser Cutting Machine for Medical Device

    Applicable Metal


    Cutting tube and pipes in stainless steel,carbon steel,mild steel,aluminum,brass,copper,galvanized steel and other metal materials.


    Applicable Fields



    Tube is variantly applicable for wide market segment in automobiles,fan industry,furniture,heavy engineering industry etc.
    1) Furniture
    Chairs, Metal Tables legs, Cots, Cabinet, TV Stands, TV Antennas,Doors,stainless steel table legs
    2) Automobile
    Handle Bar,Steering Column,Main Beam,Bottom Chassis

    3) Transformer
    Elliptical and Round Cooling Tubes

    4) Construction
    Scaffoldings & Supporting pipes

    5) Bicycle
    Handle Bar, Top Tube, Bottom Tube, Down Tube, Chain Stay, Back Stay, Stem Tube, Pedail Tube, Seat Pillar, Fork Blade.

    6) General Engineering
    Bus body structures, main beam for pedestal lfans,textile,Frames

    7) Oil Industry
    Perforating gun tube



    Specifications


    1) The double ball screw closed-loop system and imported open CNC system ensure high processing accuracy, high working efficiency and high speed.

    2) Standard collocation of 700W fiber laser generator and optional 700W~3000W fiber laser generator. Low operation and maintenance cost and maximum long-term investment returns and profits.

    3) Enclosure design meets CE standard, reliable and safe processing. Shuttle table/pallet working tables convenient for material uploading and unloading and further promotes working efficiency.

    4) Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.

    5) Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

    6) Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.

    7) Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting.

    Technical Parameters


    Tube length

    6000mm

    8000mm

    12000mm

    Tube diameter

    20-200mm

    20-300mm

    20-300mm

    Laser power

    700W/1000W/2000W/3000W

    Laser source

    IPG / N-light

    Beam mode

    Multimode

    Tube category

    Round, square, rectangular, oval, waist round, triangle
    (can customize if need to process other tubes)

    Rotate speed

    60 turn/minute

    CNC control

    Cypcut / Germany PA HI8000

    Nesting software

    Lantek

    Power supply

    AC380V , 5% 50/60Hz (3 phase)

    Total electric power

    17KW/20KW/23KW/28KW/35KW

    Position accuracy

    ±0.3mm

    Repeat position accuracy

    ±0.1mm



    Laser Cutting Tube Samples
